Maintenance and management of wet paint booths


The major issues in the maintenance and management of a wet paint booth including the treatment of waste sludge and waste water may be summarized to the following three points:

1. Optimizing cleaning and industrial waste treatment/disposal cost (paint solids/replacing circulating water)
2. Optimizing paint solidifier costs
3. Preventing odors


Since the maintenance and management of a circulating water pool in a paint booth does not immediately relate to your production outputs (nor money), their cost issue may be placed near the bottom of your priority list.
Many factories simply take action to combat immediate problems, or even where they clean it regularly, they don’t know accurately how much they spend for maintaining and managing it as a total (i.e. invisible cost): but quite often, a precise survey reveals the maintenance and management cost is greater than assumed.
To increase your competitive edge, it is critical to minimize that “invisible cost.” We are ready to help you improve the standard of the maintenance and management of your paint booth which has been placed below everything for years. A paint booth smeared with paint solids is a gold mine for us.

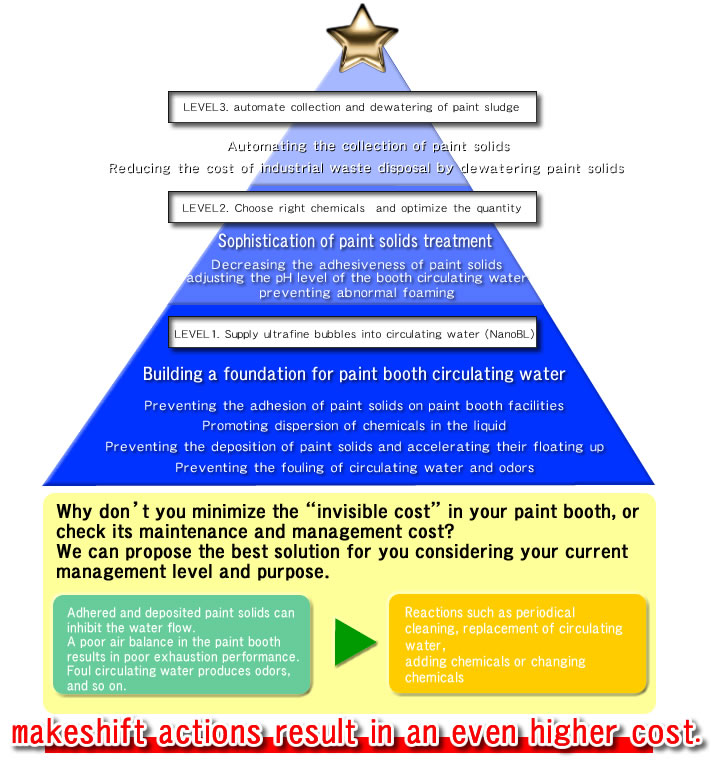

Pyramid to optimum paint booth management



Advantages of introduction in wet paint booth:


①Prevents paint solids from clogging your piping and controls their adhesion or deposition on the inside of the circulating pool (preventing adhesion and deposition)
② By dispersing micro/nano bubbles, you can also effectively disperse chemicals such as paint solidifiers (agent carrier)
・It makes a difference in your chemical costs, though it can rarely be eliminated entirely.
・It is also important to select chemicals having good performance with micro/nano bubbles.
・Consult us if you have a problem with your current chemicals.
③Controls the growth of anaerobic bacteria and prevents odors (preventing foul circulating water)
④Micro-nano bubbles facilitates paint solids to float upward and reduces the deposition of paint solids on the tank.
・Since you can collect more sludge at each periodical collection, you can extend the cycle of facility cleaning (facilitating floating).


photos in operation

Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation





Oil is used in many fields of industry. The use of micro/nano bubbles is a very effective way for facilitating separation by floatation. In general, it is very difficult to perfectly separate oil from water because part of the mixture is often emulsified.
The use of micro/nano bubbles can accelerate the breaking of emulsion, inducing not only water-oil separation but also the floatation and separation of suspended solids borne in the liquid.

Advantages of introduction:

1. Realizes oil-water separation with small energy at a low cost (can be added to existing facilities)

May be able to realize separation which has been difficult with conventional technologies
The recovered concentrated oil may be sold as a valuable depending on properties, or requires a lower cost of disposal as industrial waste than with conventional methods
The water after treatment may be reused (recycled), for instance, by diluting
Dramatically reduces loads on successive processes (activating micro organisms and prolonging filter life)

2. Controls odor (preventing fouling)

Controls anaerobic bacteria which cause odor. The micro/nano bubbles can revive your liquid and eliminate or prevent odors. Improves not only your working environment but the health of the neighborhood community and mitigates complaints.

We can propose a solution in combination such as with filtration (membrane) and a floating oil collector.
Where a large scale of oil-water separation needs to be done in a short time, it may be practical to collect most of floating oil within a certain length of time in a pre-treatment process, then collect by filtration only the little residual oil left due to the limit of time. In such cases, the oil load on the filter is so small that the intervals between filter replacements can be much longer, realizing the treatment of large amount of liquid at a minimum running cost.

photos in operation

Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation
Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation Microbubbles,Nanobubbles,Micro nano bubbles/photos in operation




Small particles such as powders sediment very slowly even if they are metals of large specific weight, while such particles float up slowly if they are lighter than water in specific weight: so, they stay suspended in water unless they are left in a stationary condition for a long period of time. But when these matters are generated in large amounts within a factory, it is difficult to leave them in a stationary condition for a long time due to the limit of time and space.
Thus, in the past, filters, large amounts of floccing agents, or pressurized floatation collection systems were needed, incurring high initial costs and running costs.

Micro/nano bubbles facilitate these suspended matters to float and separate from liquid.
By combining it with a collection system appropriate for the matters to be collected, you can improve your series of operations from separation, floatation to collection, dramatically reducing the initial and running costs of your facility.

Advantages of introduction:

・Easy introduction and installation
・Low running cost after introduction
・You can turn “waste” into “value” from recycled valuables: in our some cases, floated materials can be sold in the market
(liquid with suspended matters requires some disposal cost as industrial waste)

We can propose a solution in combination such as with filtration (membrane filters) and a floating sludge collection device.
Where a large scale of liquid-solid separation needs to be done in a short time, it may be practical to collect most of the sludge floating within a certain length of time as a pre-treatment process, then collect by filtration only the little residual left due to the limit of time. In such cases, the material load on the filter is so small that the intervals between filter replacements can be much longer, realizing the treatment of large amount of liquid at a minimum running cost.

photos in operation
